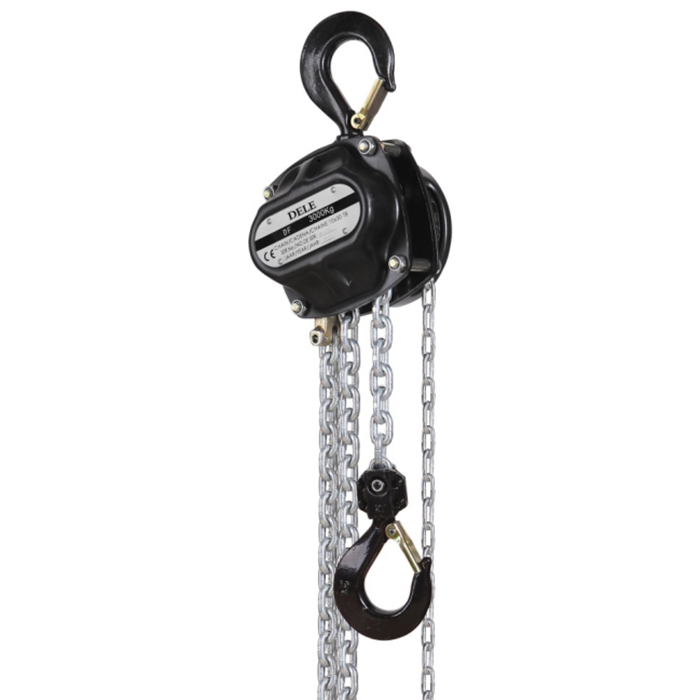

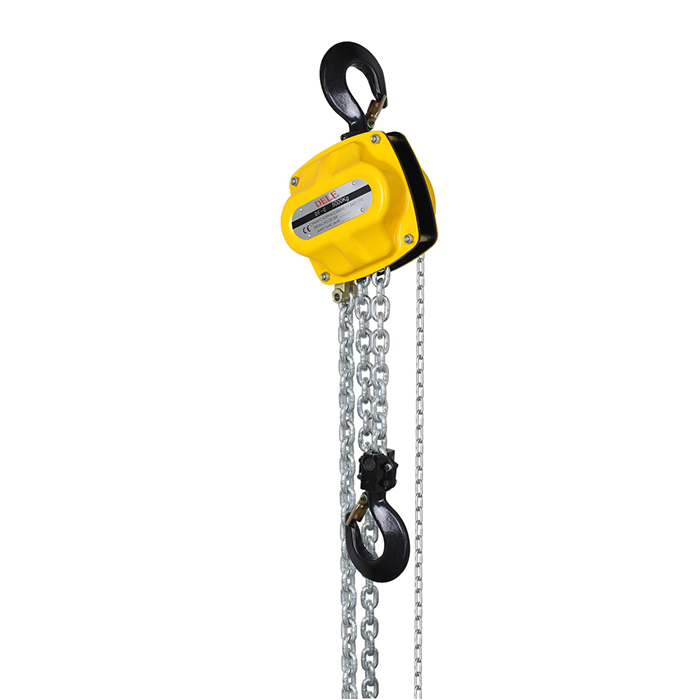

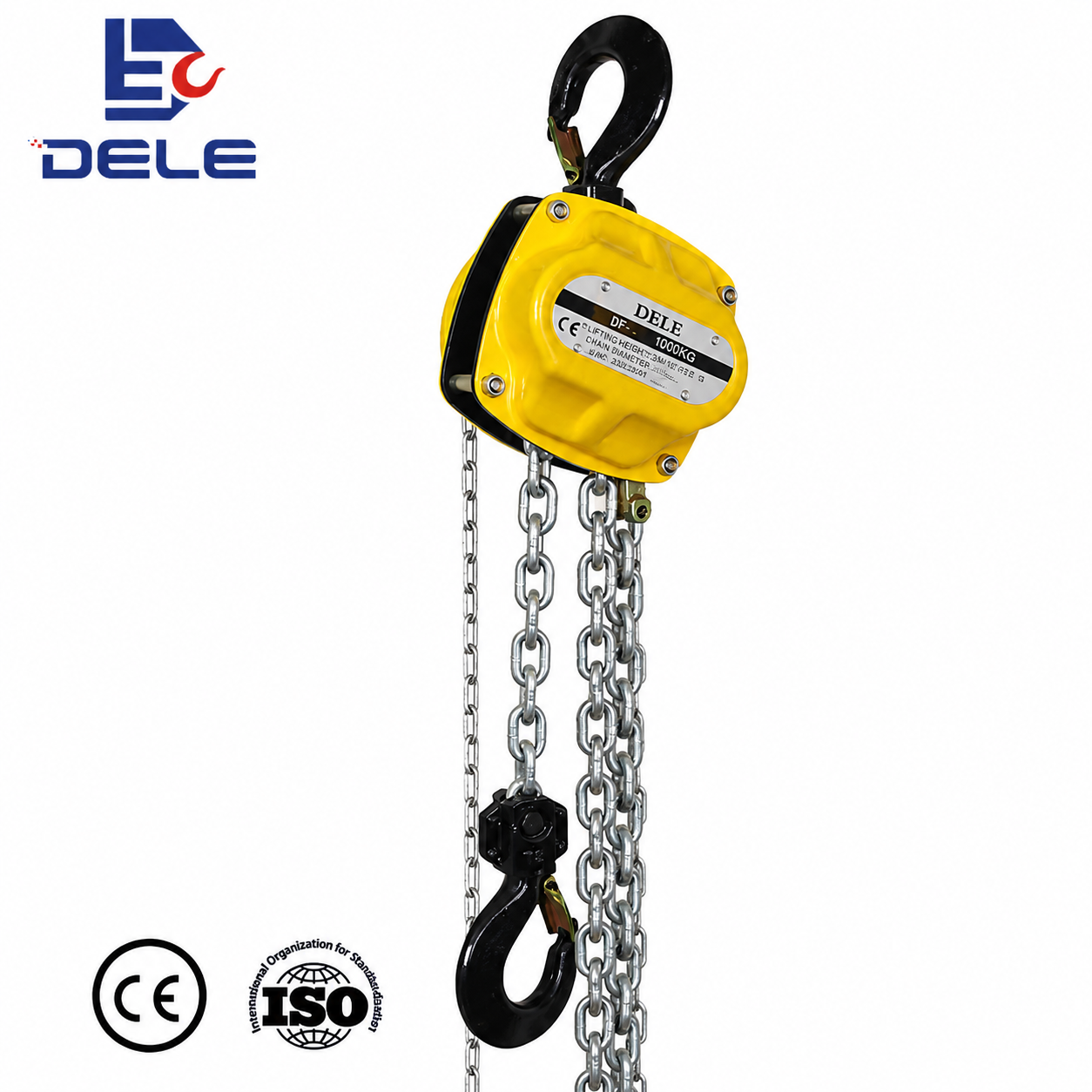

DF MANUAL CHAIN HOIST
Make by Standard:EN13157
●Chain hoist capacity range from 0.5ton to 50 ton.
● Compact sized design product suitable for all application.
● Suspension and load hooks are made of alloy steel,35CrMo treated heat and fitted with heavy duty safety latches, fitting groove and inspection points.
●Machined chain sprocket and gears provide smoother, more efficient operation.
●Hook with safety latch securely can rotate freely 360 degrees.
●Ergonomic handle design so that the hoist is easy to operate.
●Hoist has overload protection system.
●Gears are made up of 20CrMnTi material ,which ensures toughness and better strength.
●Fitted with High strength grade 80 alloy steel load chain with galvanized finish for corrosion resistance (comply with EN 818, safety factor 4)
●Load chain marked with T8 marks as per EN 818-7.
●Heavy duty guide rollers for avoiding slippage of load chain.
●Rugged construction featuring steel gear case and hand wheel cover for hand chain operation.
●All hoists tested at 1.5 times of WLL.
| Model | DF-0.5T | DF-1T | DF-1.5T | DF-2T | DF-3T | DF-5T | DF-10T | DF-15T | DF-20T | DF-30T | DF-50T | |
| Capacity load | (t) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 15 | 20 | 30 | 50 |
| Standard lift | (m） | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Load chain Number of falls | 1 | 1 | 1 | 1 | 1 | 2 | 3 | 6 | 8 | 12 | 16 | |
| Effort required to lift max load | (N) | 240 | 305 | 340 | 360 | 370 | 370 | 380 | 360 | 380 | 400 | 400 |
| Test load | （kg) | 750 | 1500 | 2250 | 3000 | 4500 | 7500 | 15000 | 22500 | 30000 | 45000 | 75000 |
| Load chain specifications | (mm) | 5x15 | 6x18 | 8x24 | 8x24 | 10x30 | 10x30 | 10x30 | 10x30 | 10x30 | 10x30 | 11.2x31 |
| Hand chain specifications | (mm) | 5x25 | 5x25 | 5x25 | 5x25 | 5x25 | 5x25 | 5x25 | 5x25 | 5x25 | 5x25 | 5x25 |
| Net weight | (kg) | 5.7 | 11 | 17 | 17 | 26 | 40 | 73 | 160 | 176 | 258 | 620 |
| Gross weight | （kg） | 6 | 11.5 | 17.6 | 17.6 | 26.5 | 40.6 | 73.6 | 180 | 200 | 285 | 670 |
| Packing size | (cm) | 27.5*14.5*15.5 | 28*17*18.5 | 31*17.5*22 | 31*17.5*22 | 39*19*26 | 44*24*26 | 58*46.5*24.5 | 47*42*70 | 47*42*70 | 58*44*73 | 102*60*100 |
| Add 1m load chain weight | (kg) | 0.541 | 0.77 | 1.36 | 1.36 | 2.2 | 4.4 | 6.6 | 13.2 | 17.6 | 26.4 | 32.4 |
| Add 1m hand chain weight | (kg) | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 1.8 | 1.8 | 1.8 | 1.8 |
| Dimensions(mm) | a | 122 | 152 | 176 | 176 | 216 | 216 | 244 | 441 | 429 | 533 | 770 |
| b | 35 | 44 | 46 | 49 | 60 | 68 | 91 | 120 | 125 | 150 | 660 | |
| c | 118 | 145 | 170 | 170 | 204 | 204 | 204 | 78 | 105 | 105 | 130 | |
| d | 22 | 30 | 32 | 34 | 41 | 47 | 61 | 400 | 376 | 373 | 373 | |
| e | 119 | 145 | 157 | 157 | 167 | 167 | 167 | 222 | 222 | 220 | 279 | |
| f | 65 | 79 | 81 | 81 | 83 | 83 | 83 | 110 | 113 | 109 | 109 | |
| Hmin | 311 | 361 | 413 | 413 | 431 | 660 | 705 | 1094 | 1100 | 1139 | 1652 |
