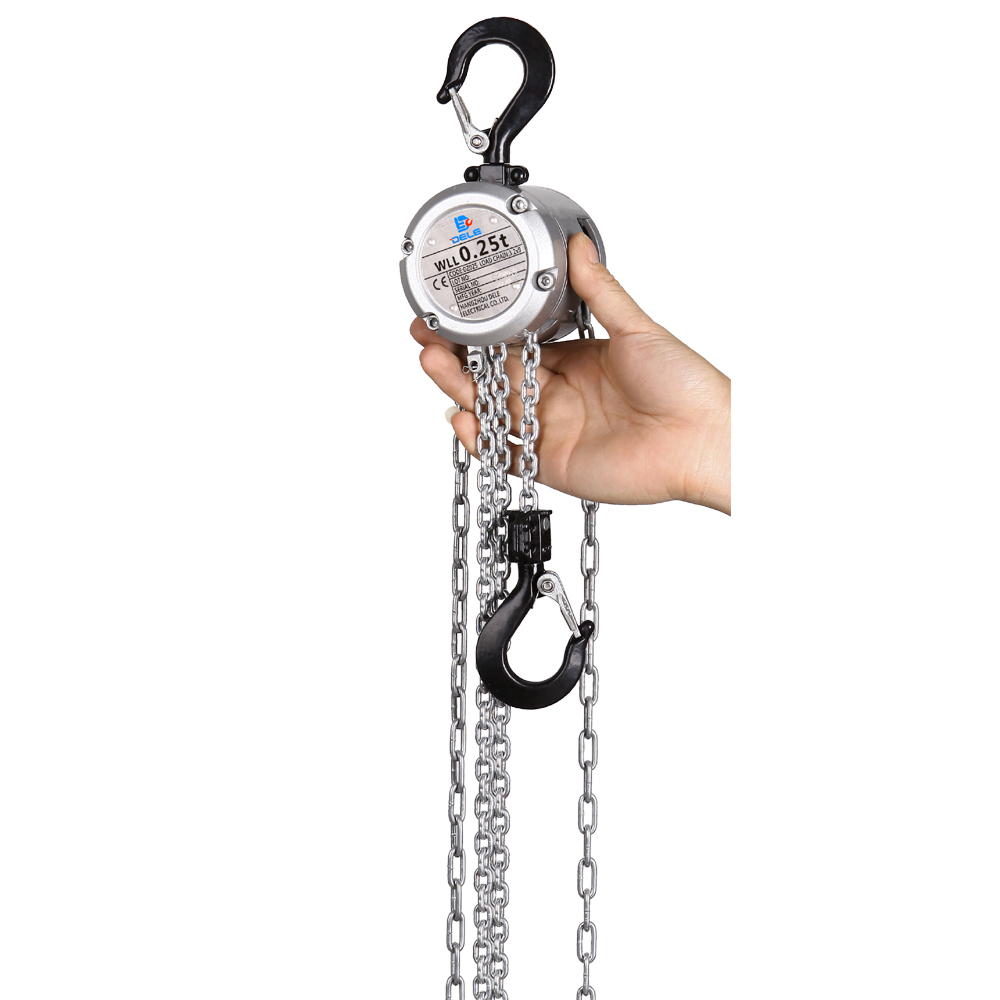

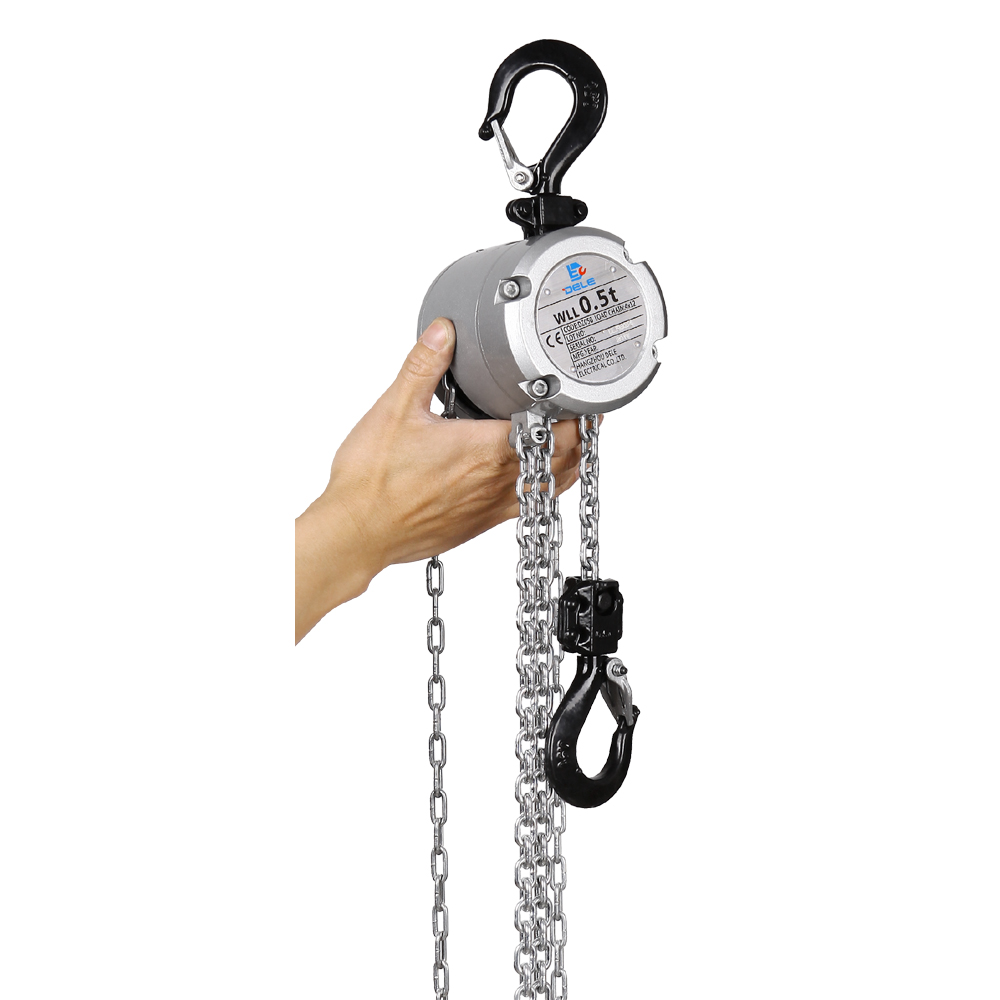

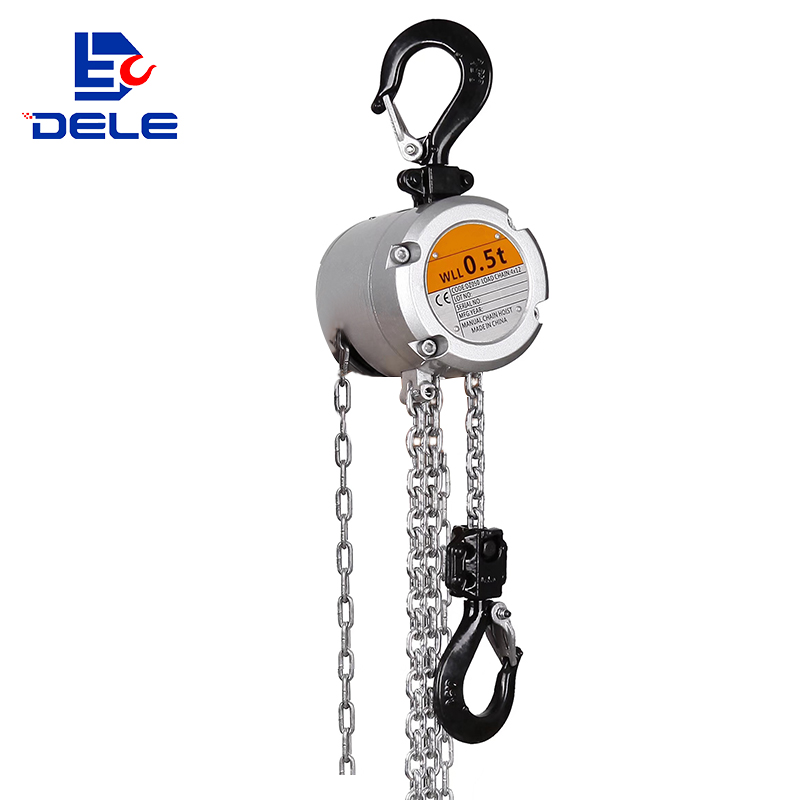

DZ ALUMINUM CHAIN HOIST
Make by Standard:EN13157
●A hook with a large inner diameter (upper and lower hook general).
●Body shell bolt Non protruding surface.
●High strength load chain.
●Equipped with hook tongue to prevent falling off(common for upper and lower hooks.
●Hand chain with strong corrosion resistance.
● Closed design can protect the internal parts from pollution.
| Model | DZ-0.25T | DZ-0.5T | DZ-B1T | |
| Capacity load | (t) | 0.25 | 0.5 | 1 |
| Standard lfit | (m) | 2.5 | 2.5 | 2.5 |
| Load chain Number of falls | 1 | 1 | 1 | |
| Effort required to lift max load | (N) | 210 | 230 | 250 |
| Test load | (kg) | 375 | 750 | 1550 |
| Load chain specifications | (mm) | 3.2x9 | 4x12 | 4x12 |
| Hand chain specifications | (mm) | 3*16.5 | 3*16.5 | 3*16.5 |
| Net weight | (kg) | 2.4 | 3.9 | 6.5 |
| Gross weight | (kg) | 2.7 | 4.2 | 6.9 |
| Packing size | (cm) | 18*11*11 | 23.5*13.5*12 | |
| Add 1m load chain weight | (kg) | 0.23 | 0.341 | 0.68 |
| Add 1m hand chain weight | (kg) | 0.34 | 0.34 | 0.34 |

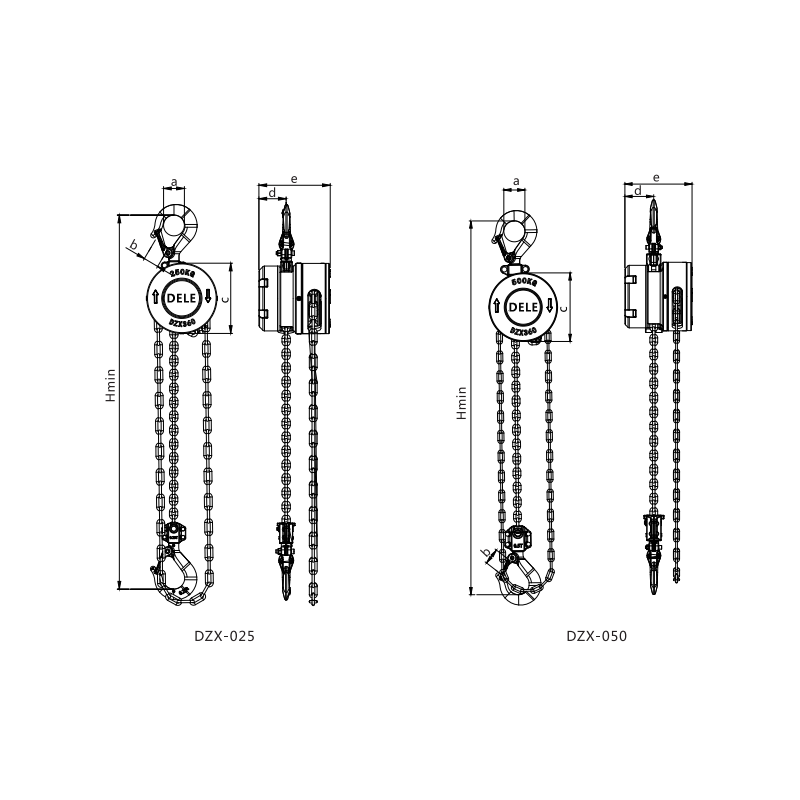

| Dimensions(mm) | a | 27 | 34 | 44 |
| b | 20 | 22 | 30 | |
| c | 82 | 104 | 104 | |
| d | 45 | 63 | 63 | |
| e | 102 | 110 | 110 | |
| Hmin | 233 | 307 | 380 |
