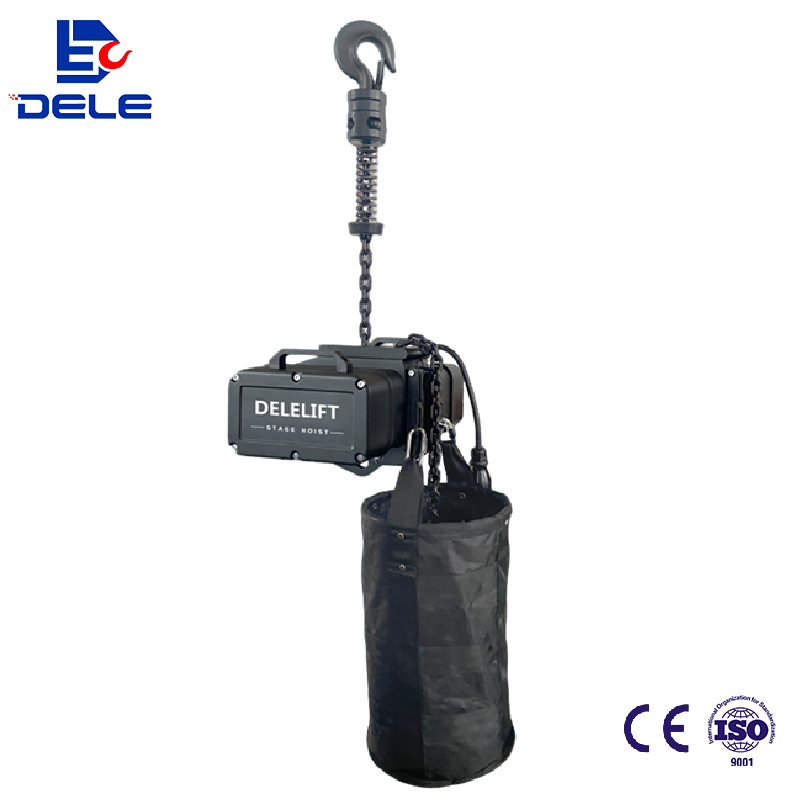

DSH-T3 STAGE HOIST
Light weight:28kg
8-10 times safe factor (0.5T 10:1)
●Double Brake:lndividual mechanical brake and electromagnetic brake, ensure stage hoist safe during working.
●Overload Protection:The stage hoist will stop working when overloaded.
●Load Chain:FEC DAT load chain according to EN818-7 standards.Mini break testing meet 8 times safety factor.
●High Strength Aluminum:Light weight,high strength, corrosion resistance. Reach to lP 66.
●Alloy Steel Forging Hook:lt can be rotated 360°and meet 10 times safety factor,has protecting cover.
●5-tooth Load Sprocket:Finish machining by CNC machining center.Suspension type design, convenient maintenance.
●Compact Light Construction:The weight of hoist body is 28 kg.
Technical parameters
| Model | Capacity（t） | Test load （t） | Protection level | Classification FEM/SO | Lifting speed (m/min) | Motor (kw) | Load chain（mm) | Load chain falls | Net weight (kg) | Chain/M (kg) |
| DSH-T3-0.5 | 0.5 | 0.625 | IP 66 | 1AM/M4 | 4 | 0.80 | Φ7.1*21 | 1 | 28 | 1.07 |
| DSH-T3-1 | 1 | 1.25 | IP 66 | 1AM/M4 | 4 | 0.80 | Φ7.1*21 | 1 | 29 | 1.07 |

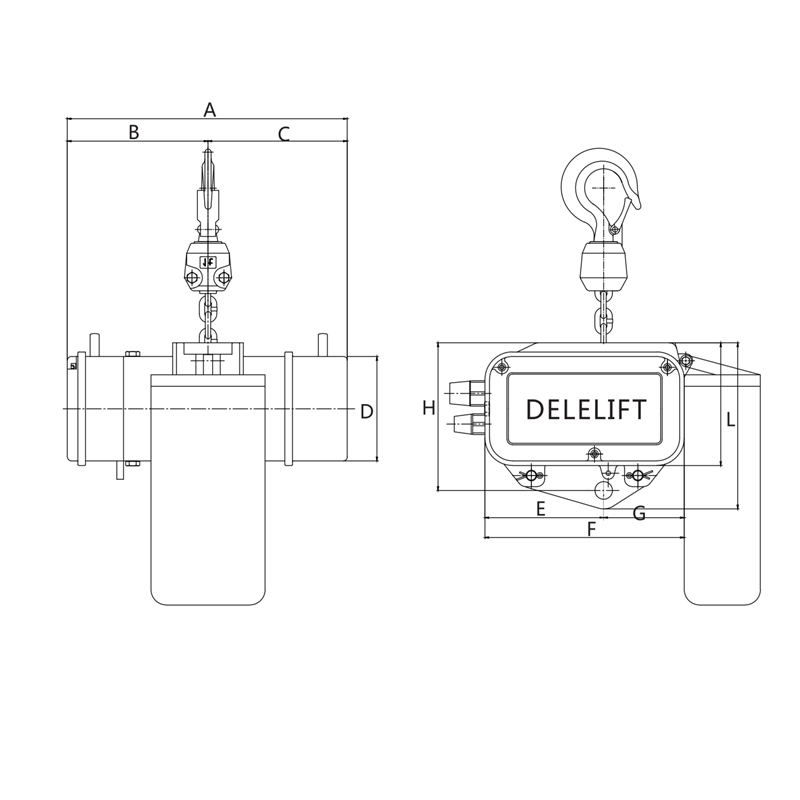

Dimension
| Model | Capacity（t） | H | A | B | C | D | E | F | G | L |
| DSH-T3-0.5 | 0.5 | 192 | 368 | 185 | 183 | 136 | 156 | 262 | 106 | 216 |
| DSH-T3-1 | 1 | 192 | 368 | 185 | 183 | 136 | 156 | 262 | 106 | 216 |
